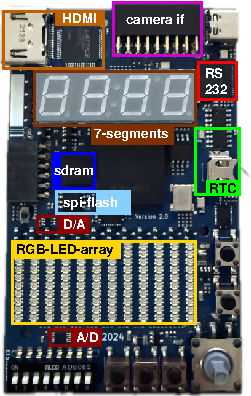

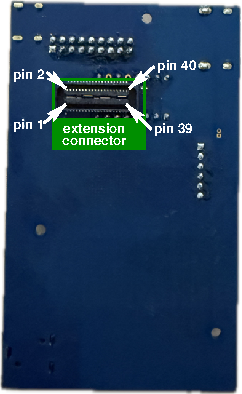

GECKO5Modular
The GECKO5Modular can be used with the oss-cad-suite and logisim-evolution.
The board can be mounted with a LFE5UM-12F, LFE5UM-25F, LFE5UM-45F, or LFE5UM-85F Lattice ECP5 FPGA.
The complete schematic can be found here. The complete lpf-file can be found here.
Configuration after production
After producing the board, no particular configuration is required. It is possible to change the USB-descriptors of the FTDI FT2232-chip. A manual how to change the descriptors can be found here.
The complete lpf-file can be found here.
USB-devices
When connecting the GECKO5Modular, two USB-devices will appear. The below table shows the devices:
Source: |
Linux: |
Windows: |
Mac-OS: |
Description: |
|---|---|---|---|---|
FT2232 chan. 1 |
/dev/ttyUSB0 |
COM11 |
/dev/tty.usbserial-122100 |
FPGA-jtag programming interface. |
FT2232 chan. 2 |
/dev/ttyUSB1 |
COM12 |
/dev/tty.usbserial-122101 |
FPGA-RS232 interface. |
Note
Of course the devices shown above can slightly differ.
