7-segment display

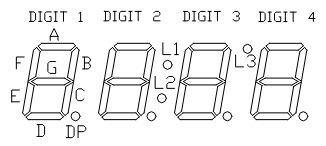

The GECKO5Education/Modular contain a 4-digit 7-segment display of type LTC-4627. This is a multiplexed 7-segment module. For reference for all descriptions below, the definitions from it’s data sheet below:

ltc5427

Using the 7-segment display

In this section you find a VHDL and Verilog top-level and the corresponding lpf-file that you can use for the 7-segment display.

Important

Although VHDL is case-insensitive, the lpf-file is not. Meaning that the port-names in the top-level entity need to be copied exactly in the lpf-file.

An example for a VHDL top-level entity is shown below:

library ieee;
use ieee.std_logic_1164.all;

entity toplevel is
  port ( displaySelect : out std_logic_vector( 2 downto 0 );
         nSegments     : out std_logic_vector( 7 downto 0 );
         ... );
end toplevel;

An example for a Verilog top-level is shown below:

module toplevel (
  output wire [2:0] displaySelect,
  output wire [7:0] nSegments,
  ...);
  ...
endmodule

The required entries in the lpf-file are:

LOCATE COMP "displaySelect[0]" SITE "C17";
LOCATE COMP "displaySelect[1]" SITE "D16";
LOCATE COMP "displaySelect[2]" SITE "C16";
LOCATE COMP "nSegments[0]" SITE "D14"; # Segment A/L1
LOCATE COMP "nSegments[1]" SITE "C13"; # Segment B/L2
LOCATE COMP "nSegments[2]" SITE "E14"; # Segment C/L3
LOCATE COMP "nSegments[3]" SITE "D15"; # Segment D
LOCATE COMP "nSegments[4]" SITE "C15"; # Segment E
LOCATE COMP "nSegments[5]" SITE "E15"; # Segment F
LOCATE COMP "nSegments[6]" SITE "B13"; # Segment G
LOCATE COMP "nSegments[7]" SITE "B15"; # Segment DP
IOBUF PORT "displaySelect[0]" PULLMODE=NONE IO_TYPE=LVCMOS33 DRIVE=4;
IOBUF PORT "displaySelect[1]" PULLMODE=NONE IO_TYPE=LVCMOS33 DRIVE=4;
IOBUF PORT "displaySelect[2]" PULLMODE=NONE IO_TYPE=LVCMOS33 DRIVE=4;
IOBUF PORT "nSegments[0]" PULLMODE=NONE IO_TYPE=LVCMOS33 DRIVE=4;
IOBUF PORT "nSegments[1]" PULLMODE=NONE IO_TYPE=LVCMOS33 DRIVE=4;
IOBUF PORT "nSegments[2]" PULLMODE=NONE IO_TYPE=LVCMOS33 DRIVE=4;
IOBUF PORT "nSegments[3]" PULLMODE=NONE IO_TYPE=LVCMOS33 DRIVE=4;
IOBUF PORT "nSegments[4]" PULLMODE=NONE IO_TYPE=LVCMOS33 DRIVE=4;
IOBUF PORT "nSegments[5]" PULLMODE=NONE IO_TYPE=LVCMOS33 DRIVE=4;
IOBUF PORT "nSegments[6]" PULLMODE=NONE IO_TYPE=LVCMOS33 DRIVE=4;
IOBUF PORT "nSegments[7]" PULLMODE=NONE IO_TYPE=LVCMOS33 DRIVE=4;

Important

  1. Note the case-sensitivity of the lpf-file.

  2. The tools require exactly one lpf-file, hence all assignments you use need to be in a single lpf-file.

The encoding of the displaySelect is shown in the table below:

displaySelect:

digit selected:

displaySelect:

digit selected:

\(000_b\)

DIGIT 1

\(001_b\)

DIGIT 2

\(010_b\)

DIGIT 3

\(011_b\)

DIGIT 4

\(100_b\)

L1/L2/L3

other encodings

all off

The encoding of the bits of nSegments in dependance of displaySelect is shown in the table below (note \(-\) denotes a don’t care):

displaySelect:

bit7:

bit6:

bit5:

bit4:

bit3:

bit2:

bit1:

bit0:

\(0--_b\)

DP

G

F

E

D

C

B

A

\(100_b\)

\(-\)

\(-\)

\(-\)

\(-\)

\(-\)

L3

L2

L1

other encodings

\(-\)

\(-\)

\(-\)

\(-\)

\(-\)

\(-\)

\(-\)

\(-\)

Important

The segments (nSegments) are active-low, meaning a logic 0 will light them up, and a logic 1 leaves them off.

Templates

To transform none-scanning high-active signals into a scanning version this VDHL or this Verilog module can be used. Both modules provide a scanning frequency of 1 kHz given the 50MHz clock as input.

Note

  1. The inputs digit1, digit2, digit3, and digit4 are active-high and have the same bit definition as nSegments, as shown in the table above.

  2. The inputs l1, l2, and l3 are active-high.

Summary

Below the table with all required information for the 7-segment display:

Name:

FPGA pin:

IO_TYPE:

Active low/high

Drive:

displaySelect bit 0

C17

LVCMOS33

active high

4 mA

displaySelect bit 1

D16

LVCMOS33

active high

4 mA

displaySelect bit 2

C16

LVCMOS33

active high

4 mA

segments bit 0

D14

LVCMOS33

active low

4 mA

segments bit 1

C13

LVCMOS33

active low

4 mA

segments bit 2

E14

LVCMOS33

active low

4 mA

segments bit 3

D15

LVCMOS33

active low

4 mA

segments bit 4

C15

LVCMOS33

active low

4 mA

segments bit 5

E15

LVCMOS33

active low

4 mA

segments bit 6

B13

LVCMOS33

active low

4 mA

segments bit 7

B15

LVCMOS33

active low

4 mA
